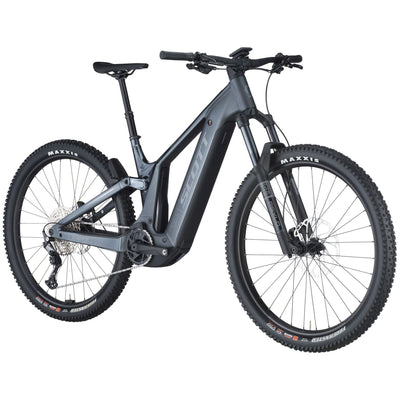

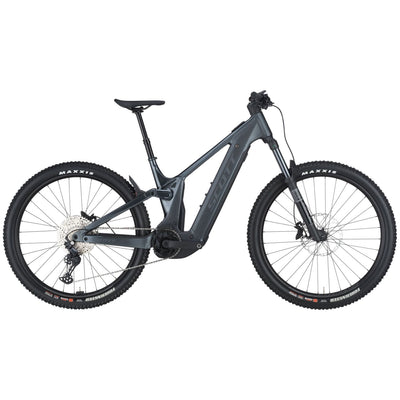

Scott Patron 920 2025 Granite Black
4233636922010
SCOTT PATRON 920 2025 GRANITE BLACK
The Scott Patron 920 2025 Granite Black is an electric mountain bike for off-road rides and trails. Its assistance system uses the Bosch Performance CX motor and a 800 Wh battery. The 1x12 drivetrain lets you adjust your pedalling to the route.
FEATURES:
- Frame: Alloy Frame. Integrated Suspension Technology. Virtual 4 Link kinematic/Adjustable head angle. Syncros Cable Integration System. Bosch Smart System/UDH Interface/12x148mm with 55mm Chainline. Bosch P
- Fork: RockShox Psylo Silver RC Air/E-Bike/Comp & Reb Adj./QR Axle 15x110mm axle. 44mm offset/tapered steerer/150mm travel
- Rear Shock: X-Fusion NUDE 5 RLX Trunnion. SCOTT custom w. travel/geo adj..3 modes: Lockout-Traction Control-Descend. Reb. Adj..Travel 150-100-Lockout/T185X55mm
- Rear Derailleur: Shimano Deore RD-M6100 SGS. Shadow Plus/12 Speed
- Shifters: Shimano Deore SL-M6100-IR/Rapidfire Plus
- Crankset: FSA Alloy
- Cassette/Rear Sprocket: Shimano CS-M6100/10-51
- Chain/Belt: Shimano CN-M6100
- Front Brake: Shimano MT520 4 Piston Disc
- Rear Brake: Shimano MT520 4 Piston Disc
- Front Tire: Maxxis Forekaster 29x2.6" 120TPI Foldable Bead EXO/TR Tubeless ready 3C Maxx Terra
- Rear Tire: Maxxis Forekaster 29x2.6".120TPI Foldable Bead. EXO/TR Tubeless ready. 3C Maxx Terra
- Handlebar: Syncros Hixon 2.0 Alloy 6061.Size S & M 15mm rise/Size L & XL 25mm rise/back sweep 8°/780mm. Syncros Endurance lock-on grips
- Stem: Syncros AM 2.0.Syncros Cable Integration System. 4° rise/6061 Alloy/31.8mm/1 1/8"
- Seatpost: Syncros Duncan Dropper Post 2.5.31.6mm/S size 125mm/M size 150mm/L size 170mm/XL size 200mm
- Saddle: Syncros Tofino-E 2.5 Regular
- Motor: Bosch Performance CX. EU: 25kmh/PowerTube 800Wh
- Battery: PowerTube 800Wh
- Display: Bosch System Controller Mini Remote & Intuvia 100
- Charger: 4A Charger
- Drivetrain: 1x12
- Approximate Weight: 25.8 kg
- Suspension Remote: SCOTT TracLoc 2 Technology. Suspension & Dropper Remote. 3 modes
- Headset: Syncros - Acros Angle adjust & Cable Routing HS System/+-0.6° head angle adjustment. ZS56/28.6 – ZS56/40 MTB
- Front Hub: Formula CL-811/15x110mm
- Rear Hub: Formula ECT-148M/Boost 148x12mm
- Rims: Syncros MD30/32H/30mm/Pin Joint. Tubeless ready
- Spokes: Stainless steel Black
- Chain Guide: e*thirteen/e*spec Slider
- Rear Light: Syncros, integrated into the rear mudguard
Specifications may change without notice.
Passt gut zu
Fast and secure delivery
Personalised advice
2-year warranty
Hassle-free returns
Scott Patron 920 2025 Granite Black
Sollten Sie Fragen haben, können Sie sich jederzeit gerne an uns wenden. Wir melden uns so schnell wie möglich bei Ihnen – an Werktagen innerhalb von 24 Stunden.
-
Versandinformationen
Verwenden Sie diesen Text, um die Fragen Ihrer Kunden so ausführlich wie möglich zu beantworten.
-
Kundensupport
Verwenden Sie diesen Text, um die Fragen Ihrer Kunden so ausführlich wie möglich zu beantworten.
-
FAQ’s
Verwenden Sie diesen Text, um die Fragen Ihrer Kunden so ausführlich wie möglich zu beantworten.
-
Kontakt
Verwenden Sie diesen Text, um die Fragen Ihrer Kunden so ausführlich wie möglich zu beantworten.
Produktdetails
General
- Year
- 2025
- Gender
- Unisex
- Family
- Bicis
- Wheel size
- 29
Frame
- Frame
- Aluminio Frame. Tecnología de suspensión integrada. cinemática virtual de cuatro bieletas/Ángulo de dirección ajustable. Syncros Cable Integration System. Bosch Smart System/interfaz UDH/12x148mm con 55 mm Línea de cadena. Bosch P
- Fork
- RockShox Psylo Silver RC Aire/E-Bike/compresión y Reb Adj./QR Eje 15x110mm Eje. 44mm desplazamiento/Tubo de dirección cónico/150mm Recorrido
- Rear shock
- X-Fusion NUDE 5 RLX Trunnion. ajuste específico SCOTT con Recorrido/ajuste de geometría. 3 modos: Bloqueo-Traction Control-Descend. Ajuste de rebote. Recorrido 150-100-Bloqueo/T185X55mm
- Headset
- Syncros - Acros ajuste del ángulo & sistema de dirección y guiado de cables/+-0.6° ajuste del ángulo de dirección. ZS56/28.6 – ZS56/40 MTB
Cockpit
- Handlebars
- Syncros Hixon 2.0 Aluminio 6061.Size S & M 15mm Elevación/Size L & XL 25mm Elevación/Retroceso 8°/780mm. Syncros Endurance lock-on grips
- Stem
- Syncros AM 2.0.Syncros Cable Integration System. 4° Elevación/6061 Aluminio/31.8mm/1 1/8"
Brakes
- Front brake
- Shimano MT520 4 Pistones Disc
- Rear brake
- Shimano MT520 4 Pistones Disc
Saddle
- Saddle
- Syncros Tofino-E 2.5 Regular
- Seatpost
- Syncros Duncan tija telescópica 2.5.31.6mm/S size 125mm/M size 150mm/L size 170mm/XL size 200mm
Drivetrain
- Shift levers
- Shimano Deore SL-M6100-IR/Rapidfire Plus
- Rear derailleur
- Shimano Deore RD-M6100 SGS. Shadow Plus/12s
- Cassette
- Shimano CS-M6100/10-51
- Chain
- Shimano CN-M6100
- Crankarms
- FSA Aluminio
- Chainrings
- FSA 12s 34t chainring
- Speeds
- 1x12
- Chain guide
- e*thirteen/e*spec Slider
Wheels
- Front tire
- Maxxis Forekaster 29x2.6" 120TPI aro plegable EXO/TR compatible con montaje tubeless 3C Maxx Terra
- Rear tire
- Maxxis Forekaster 29x2.6".120TPI aro plegable. EXO/TR compatible con montaje tubeless. 3C Maxx Terra
- Rims
- Syncros MD30/32H/30mm/Pin Joint. compatible con montaje tubeless
- Front hub
- Formula CL-811/15x110mm
- Rear hub
- Formula ECT-148M/Boost 148x12mm
- Spokes
- Acero inoxidable Negro
eBike Components
- Motor
- Bosch Performance CX. EU: 25 km/h
- Battery
- PowerTube 800Wh
- Charger
- 4A cargador
- Screen
- Bosch System Controller Mini Remote & Intuvia 100
- Remote control
- Bosch Mini Remote
Other Components
- Rear light
- Syncros, integrada en el guardabarros trasero
- Remote lockout
- SCOTT TracLoc 2 Technology. mando remoto de suspensión y tija telescópica. 3 modos
*Images are for illustrative purposes only and may differ from the final product. Colours may vary depending on the screen used.
*Please note that technical specifications may be changed without prior notice by the manufacturer.
